贴片发光二极管
1206贴片LED 七彩

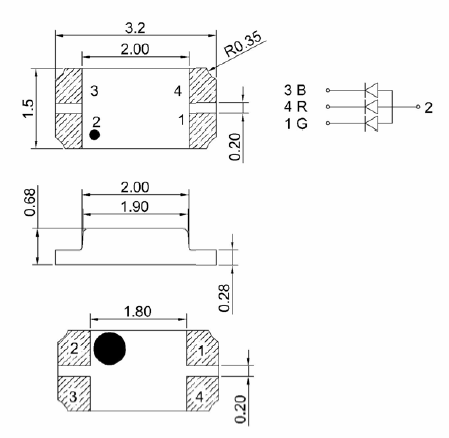

Typical Electrical & Optical Characteristics (Ta=25℃)
Part Number:HHSRGB1206TP
|
|||||||
Absolute maximum ratings (Ta=25℃)
|
|||||||
Parameter
|
Symbol
|
Value
|
Unit
|
||||
Forward current
|
If
|
20
|
mA
|
||||
Reverse voltage
|
Vr
|
5
|
V
|
||||
Power dissipation
|
Pd
|
280
|
mW
|
||||
SolderingTemperature
|
Tsol
|
260(for 5seconds)
|
℃
|
||||
Operating temperature range
|
Top
|
-25~+80
|
℃
|
||||
Storage temperature range
|
Tstg
|
-30~+80
|
℃
|
||||
Peak pulsing current(1/8 duty f=1KHz)
|
Ifp
|
100
|
mA
|
||||
Electrostatic discharge
|
ESD
|
500
|
V
|
||||
Electr-Optical characteristics(Ta=25℃,If=20mA)
|
|||||||
Parameter
|
Test
Condition
|
Symbol
|
Value
|
Unit
|
|||
Min
|
Typ
|
Max
|
|||||
Walvelenth
|
If=20mA
|
λd
|
620
|
625
|
630
|
nm
|
|
515
|
520
|
525
|
|||||
463
|
468
|
472
|
|||||
Forward voltage
|
If=20mA
|
Vf
|
1.8
|
2.1
|
2.5
|
V
|
|
2.8
|
3.0
|
3.6
|
|||||
2.8
|
3.0
|
3.6
|
|||||
Luminous intensity
|
If=20mA
|
Iv
|
200
|
300
|
---
|
mcd
|
|
400
|
600
|
---
|
|||||
100
|
150
|
---
|
|||||
Viewing angle at 50% IV
|
If=20mA
|
2θ1/2
|
---
|
120
|
---
|
Deg
|
|
Reverse current
|
If=20mA
|
Ir
|
---
|
10
|
---
|
μA
|
